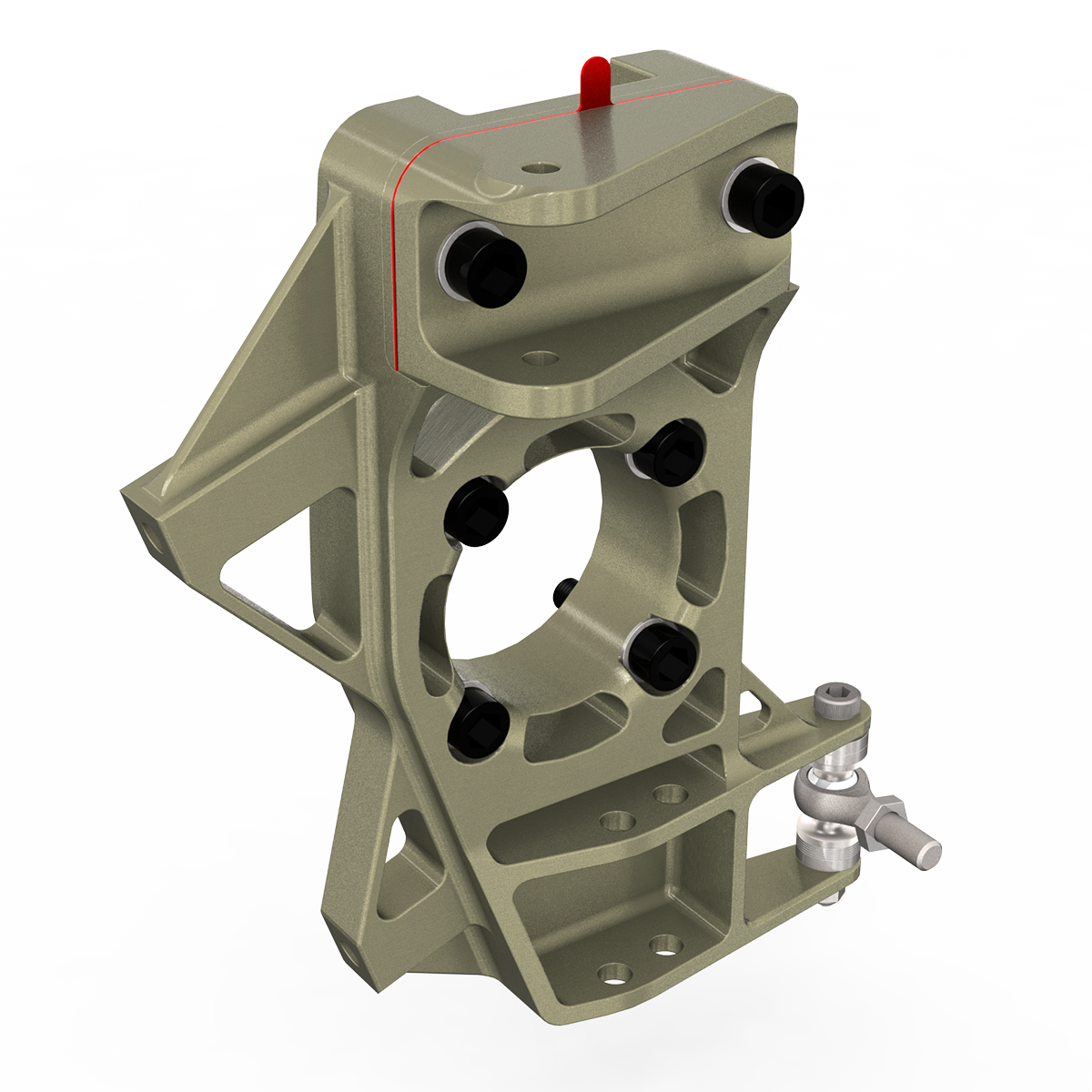

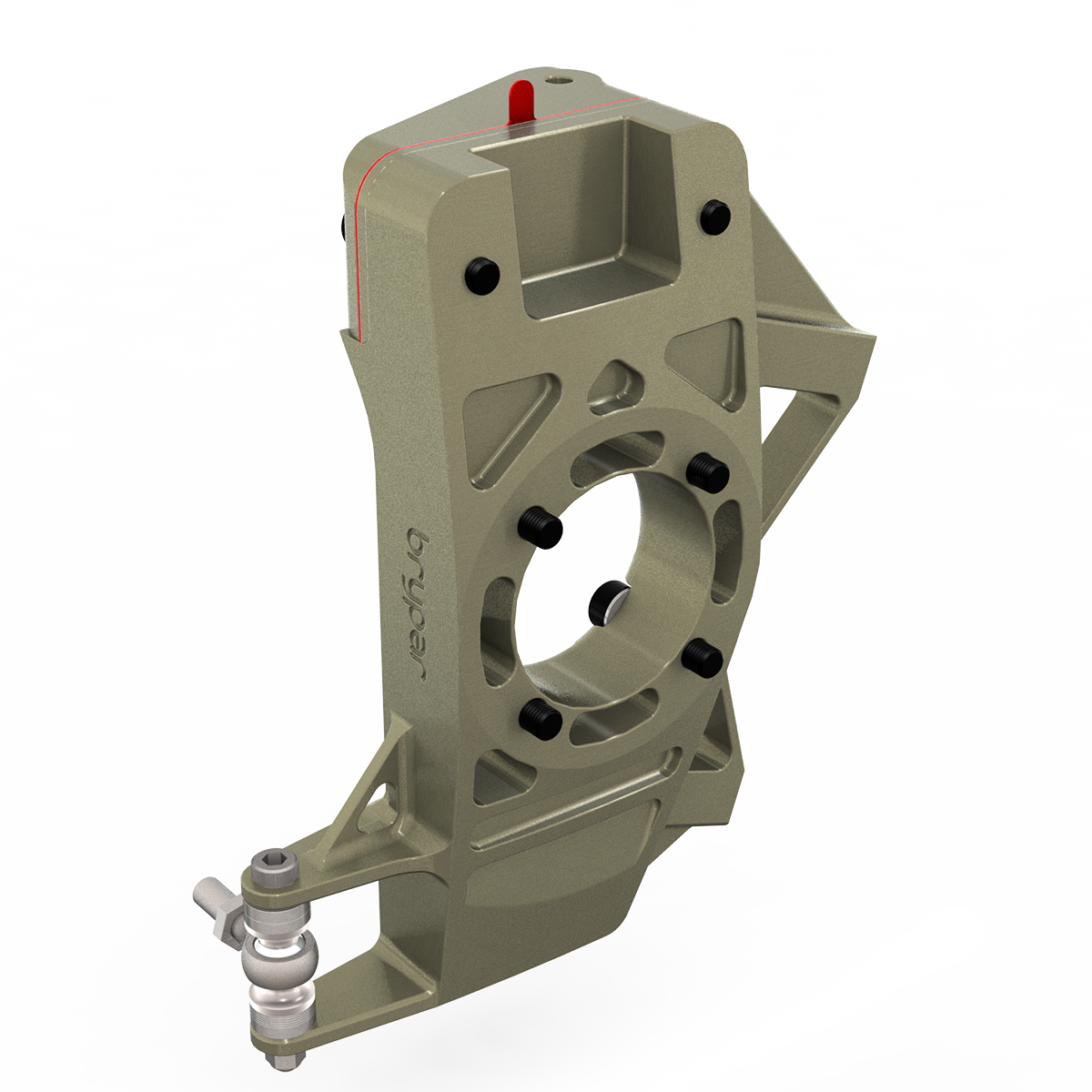

Brypar Universal Monobloc UprightKit.UNI.MONO
Universal monobloc upright for motorsport use
Brypar’s modular motorsport upright has been designed to work in a double wishbone setting and unlike it’s universal cousin is a single piece monobloc unit. The very nature of it’s design allows the height, width, brake caliper post width, brake caliper post offset and steering position to be changed without incurring expensive design fees, while the cost of uprights must be determined on a project by project basis. A removable upper section allows easy camber adjustment through replaceable shims, and if toe or steer points are incorporated into this top section will allow camber change with affecting toe. A large diameter bolt-in motorsport bearing adds significant strength and stiffness while making servicing easy. Brypar can also design hubs in 4/5 bolt or centrelock.
AVAILABLE AS SPECIAL ORDER ONLY
AUD$4,450.00 inc GST
