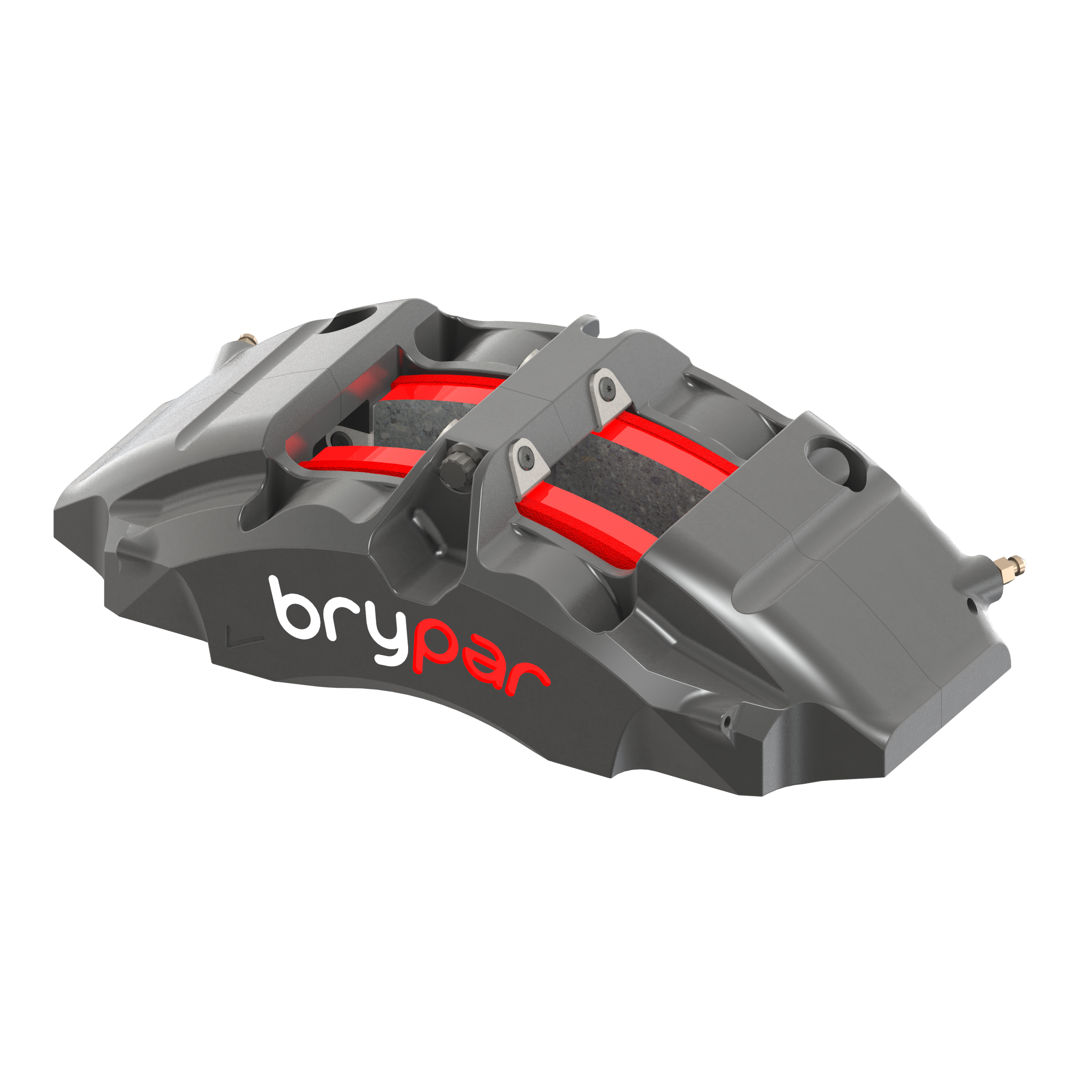

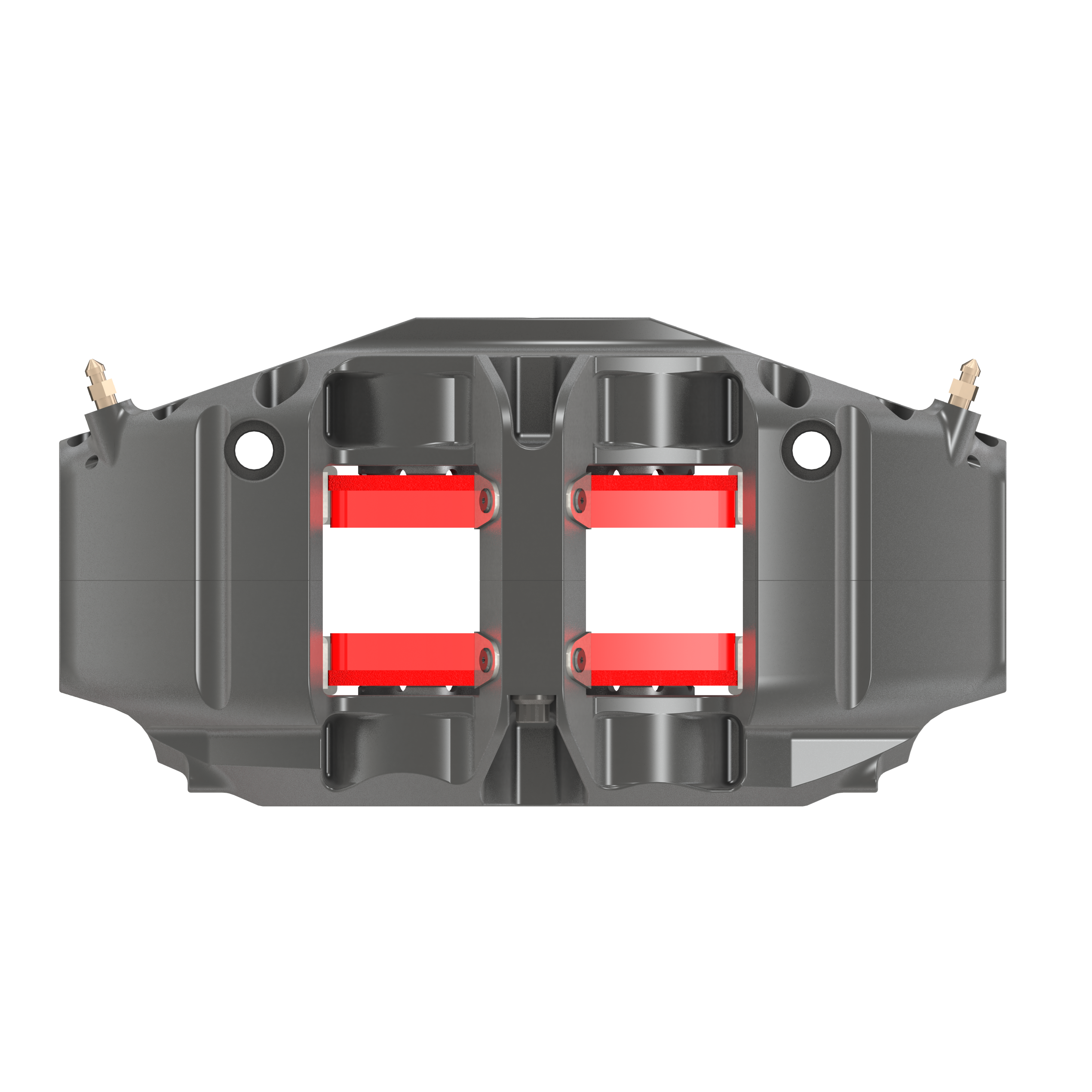

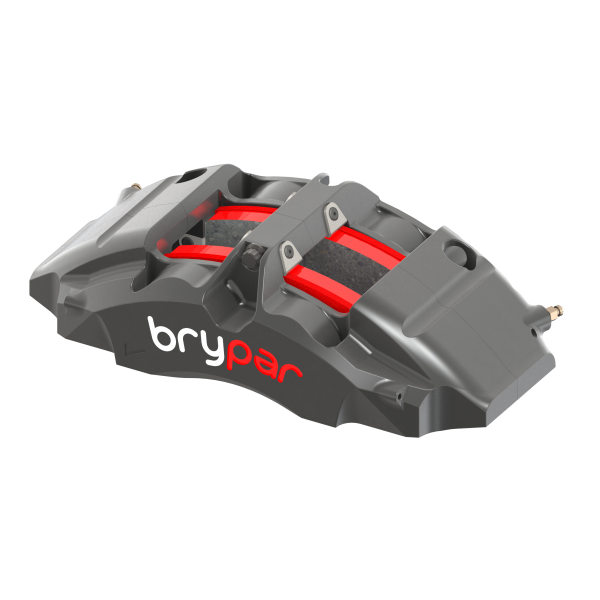

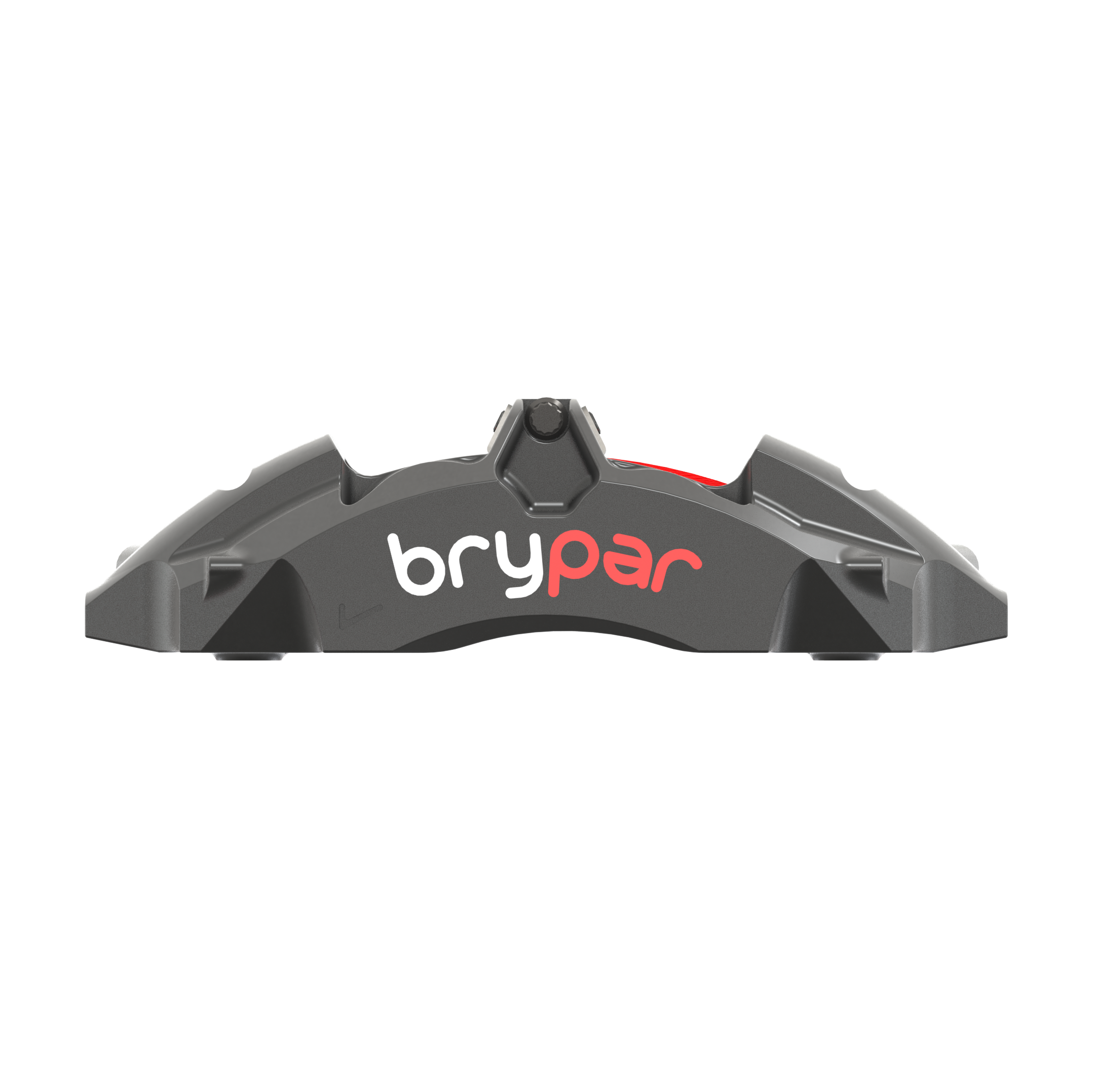

4 Piston Narrow Motorsport Brake Caliper

RCS4EH2

Description

Brypar  Sport Series motorsport brake calipers have been specifically designed as an entry level motorsport brake caliper. Machined from solid billet the 2 piece design uses a fixed bridge to increase overall stiffness, while using widely available pad shape allowing the user a wide range of pad compound choice. Designed to use an 17mm pad with up to a 32mm width disc between 320-343mm, the sport series is a true motorsport caliper without the motorsport caliper price. Aluminium pistons with integrated cooling, internal fluid lines, stainless steel wear plates, high temperature seals and a hard anodise finish all come as standard. For use where a smaller front caliper or rear caliper is required.

Specification

Disc Diameter - mmPiston Sizes - mmDisc thickness - mmPL Dimension - mmMounting & OffsetPad ShapeWeight
Max = Ø343.0
Min = Ø320.0
32.0 x 2
36.0 x 2
Max = 32.0
Min = 30.0
68.9Radial mounting
180mm x 42mm
CP2279D50
17mm thickness
3.6kg
SKU: RCS4EH2 Categories: ,

Contact us for pricing
