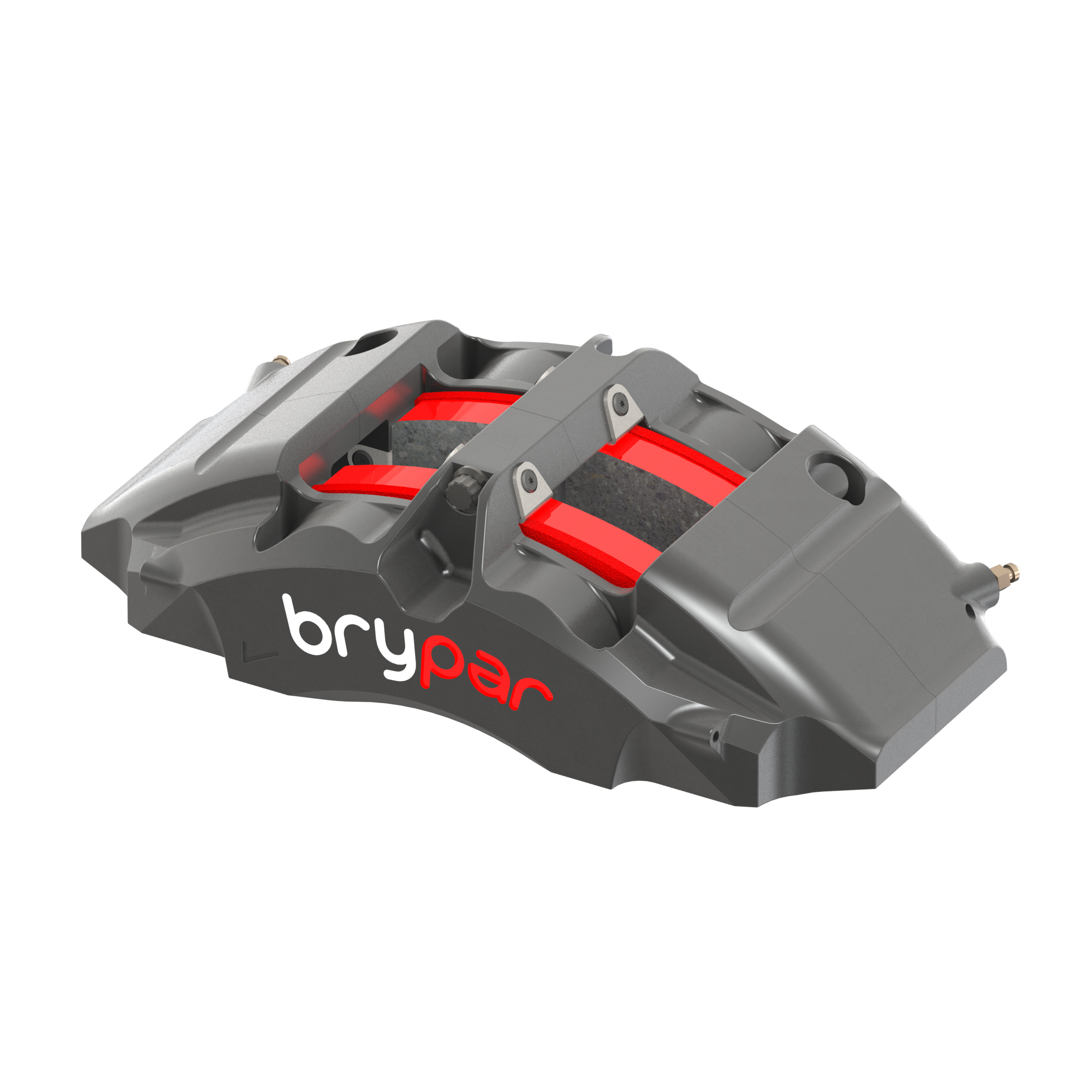

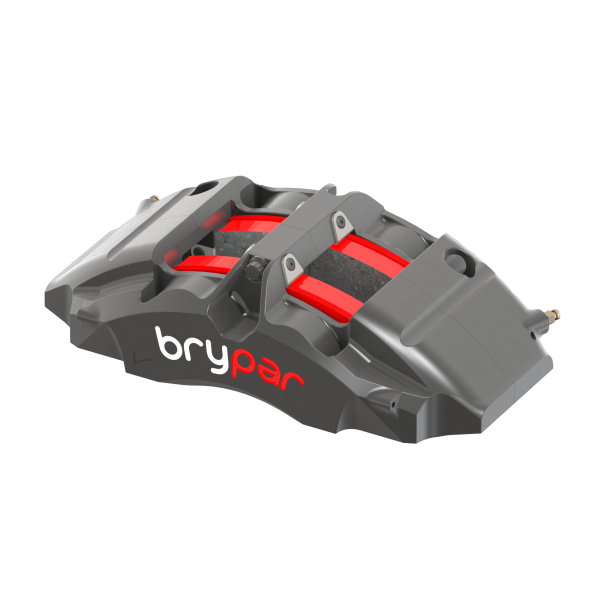

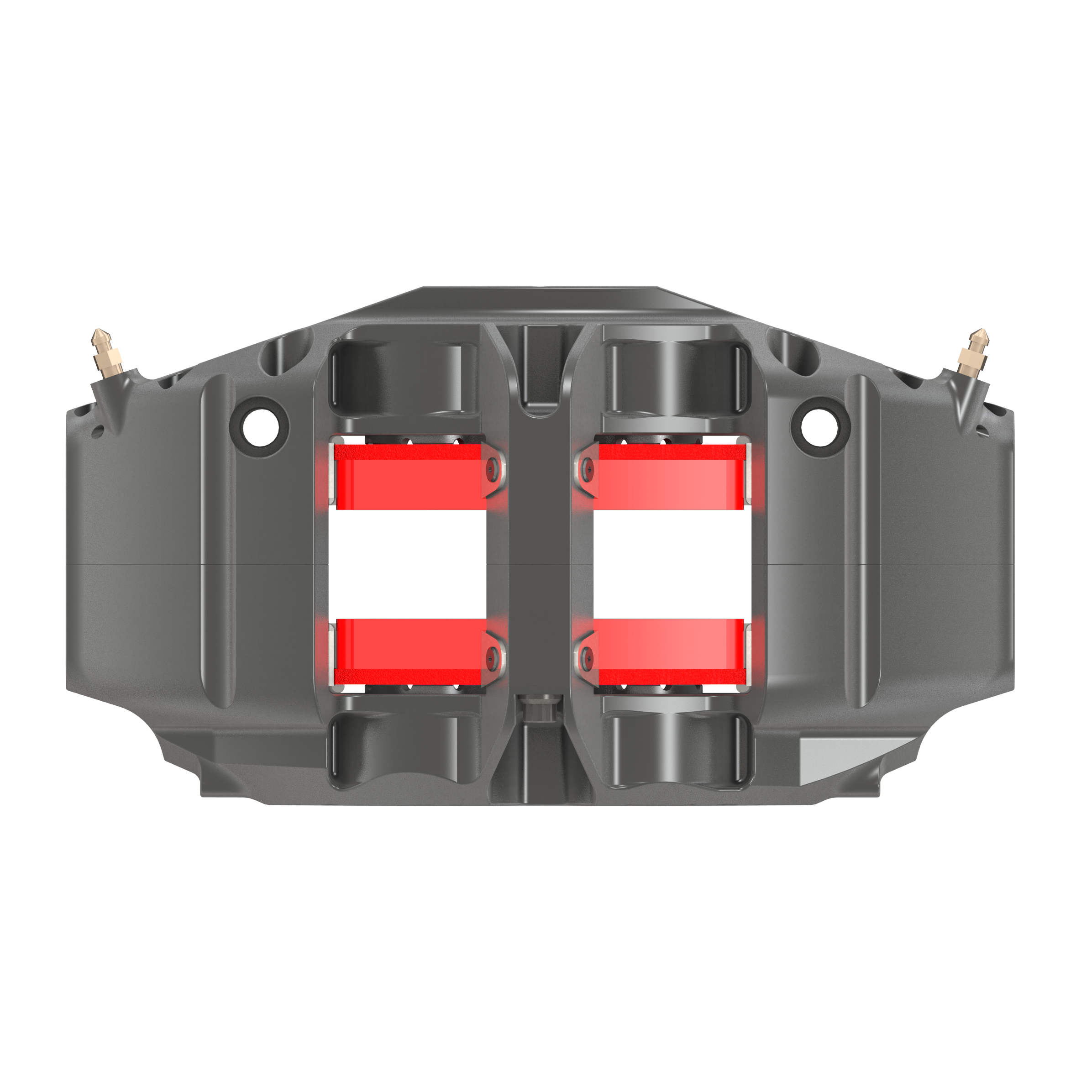

4 Piston Motorsport Brake Caliper



Brypar  Sport Series motorsport brake calipers have been specifically designed as an entry level motorsport brake caliper. Machined from solid billet the 2 piece design uses a fixed bridge to increase overall stiffness, while using widely available pad shape allowing the user a wide range of pad compound choice. Designed to use an 21mm pad with up to a 34mm width disc between 320-343mm, the sport series is a true motorsport caliper without the motorsport caliper price. Aluminium pistons with integrated cooling, internal fluid lines, stainless steel wear plates, high temperature seals and a hard anodise finish all come as standard.


Disc Diameter - mmPiston Sizes - mmDisc thickness - mmPL Dimension - mmMounting & OffsetPad ShapeWeight
Max = Ø343.0
Min = Ø320.0
38.0 x 2
44.0 x 2
Max = 34.0
Min = 32.0
68.9Radial mounting
180mm x 44mm
21mm thickness
SKU: RCS4JL2 Categories: ,

Contact us for pricing
